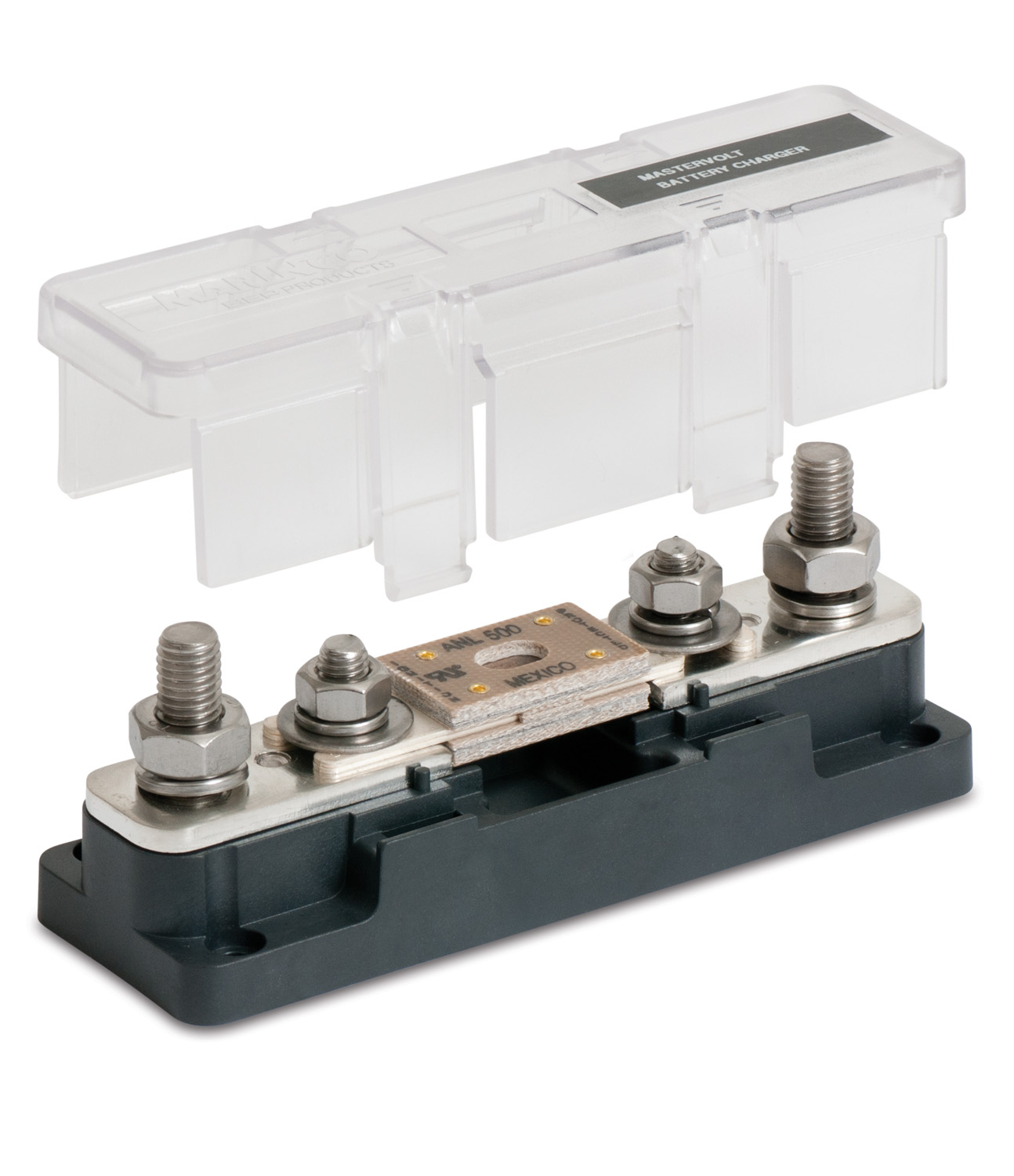

BEP 778-ANL2S Fuse Holder with 2 Additional Studs

BEP778ANL2S
BEP

$70.50 $37.91

4 in stock
Qty :

Description

BEP 778-ANL2S 35-750A ANL Fuse Holder

Model: 778-ANL2S

  • Radiused ends improve cable routing options
  • for use with 5/16″ (8mm) or 3/8″ (10mm) ANL fuses
  • High temperature, fibre reinforced plastic base provides strength and chemical resistance
  • Clear polycarbonate cover
  • Modular sizing and common interconnection height: Easily linked with other Pro Installer Busbars and Fuseholders saving installation time and space
  • Compact footprints save space
  • Fuse viewing "window" in cover aids visual inspection of fuse-state

These ANL fuse holders offer unparalleled circuit protection choice for both the installer and end-user.

Specifications

CabLe connection 10mm (3/8″) studs
Fuse moutning studs 8mm (5/16″)
Fuse type ANL or ANN
Amperage range 35-750A fuse dependant
max voltage 50vDC
Dimensions 5.8″ x 1.9″ x 2.4″

Additional information

Weight 0.00 lbs
Model Number 778-ANL2S
UPC 843687006787
