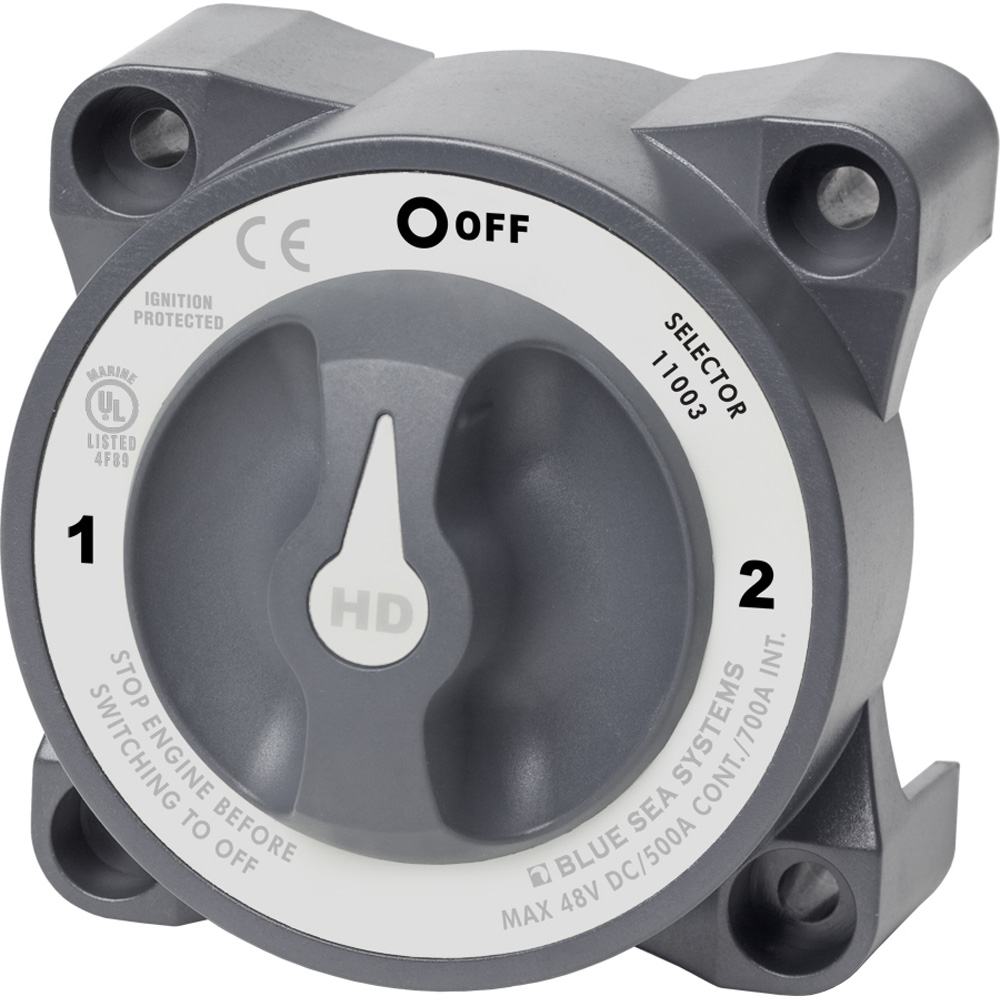

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect – 3-Position

34970
Blue Sea Systems

$137.79 $82.98

27 in stock
Qty :
,

Description

11003

Features:

  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Ignition protected safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm) battery cables
  • M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2″ and M12 ring terminals
  • 7/8″ (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting

Switch Ratings:

    10 Sec: 2750A
    60 Sec: 1150A
    5 Min: 700A
    Continuous: 500A
    Max Voltage: 32V DC

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    AFD = Yes | Lockable = NONE | Positions = 3 | Continuous Amperage = NONE

Additional information

Weight 1.3 lbs
Dimensions 9 × 7 × 3 in
Model Number 11003
UPC 632085110031
