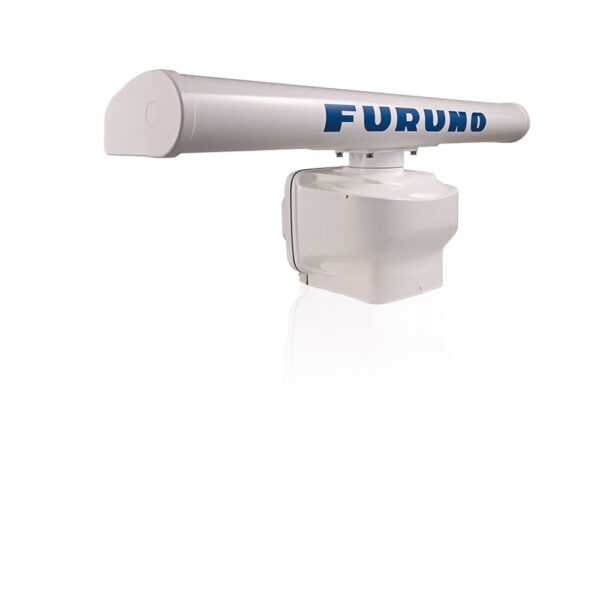

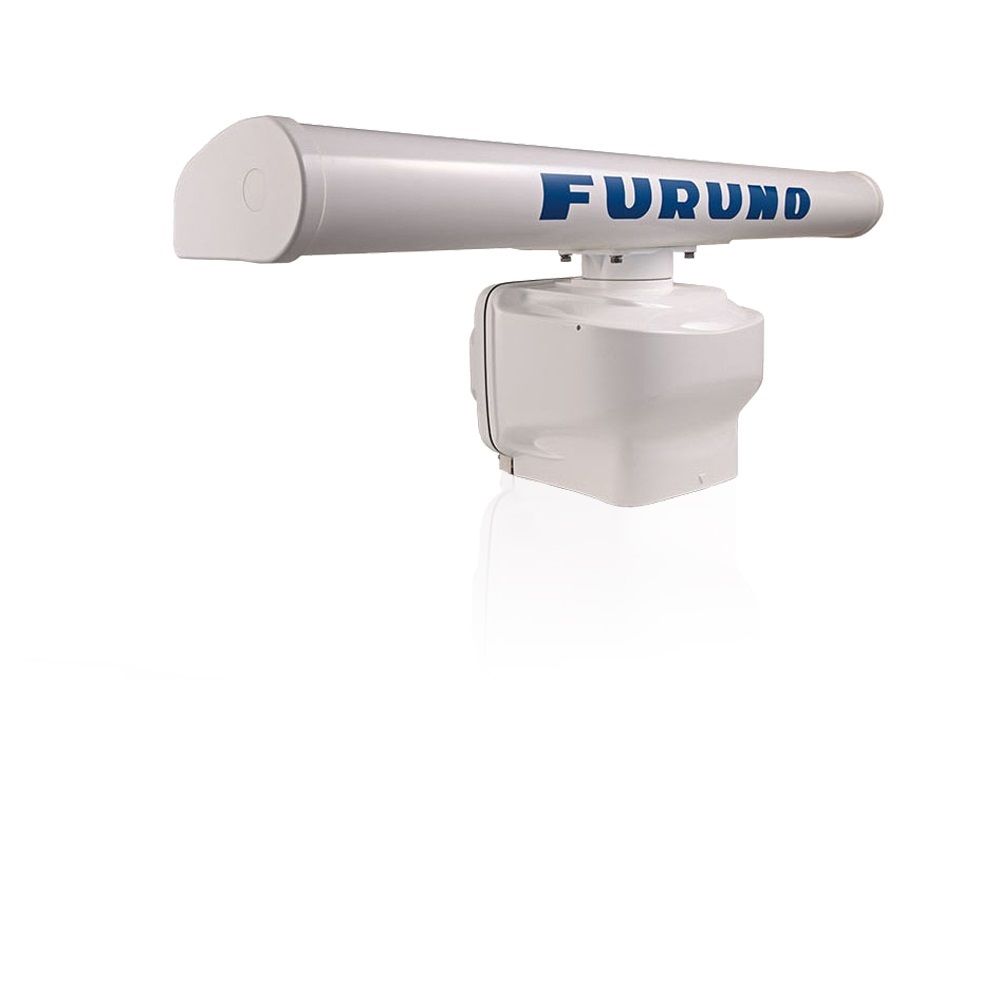

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 4′ Antenna

FURDRS6AX4
Furuno

$5770.00

(MRP Pricing)

0 in stock
Qty :

Description

Furuno DRS6AX 6kw UHD Digital Radar with 4′ Antenna and 15M Cable

Model: DRS6AX/4

  • 6kW Power Output
  • Enhanced target detection, both short and long range
  • Minimum detection range of just 20 m
  • Fast Target Tracking™
  • Bird Mode
  • New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
  • No PSU required, decreasing total costs
  • Easy installation without the need to open pedestal unit
  • New smart-connector cable
  • The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
  • Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Antenna rotation speed 24/36/48 rpm range coupled or 24rpm fixed
Beam width 1.9d Horizontal 22d Vertical
Range scales 0.0625 to 120 nm
Waterproofing IP56
Power supply 24vDC 4.0A

What’s in the Box:

  • 001-376-480-00 15m Cable
  • RSB134-112 Pedestal
  • XN12A/4 4′ Antenna

Additional information

Weight 80.00 lbs
Model Number DRS6AX/4
