Description

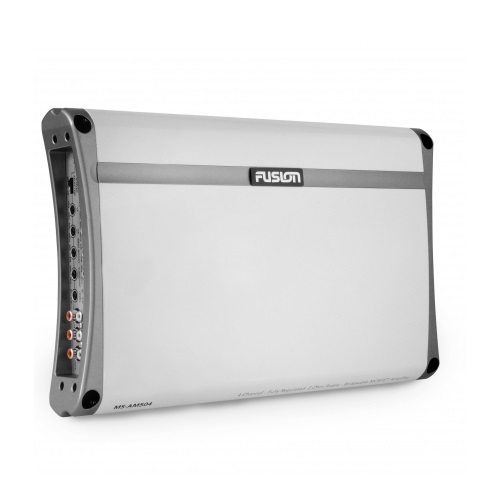

Fusion MS-AM504 500 Watt 4 Channel Amplifier
Model: 010-01500-00
UPC: 0753759139254
- Excellent to power the SW10 Sub-woofer or two pairs of speakers in parallel.
- 2-Ohm Stable
- Boat Amps feature conformal coated boards, stainless steel end-caps, Fusion Intercooled, Semi-Conductor Technology (F.I.S.T.)
- Fusion Regulated Amplifier Technology (F.R.A.T.)
- Subsonic Filter
- Variable Low and High Pass filters
- Variable Bass Boost 0 – + 18dB
- 4 Gauge Power and Ground Connections
- Nickel Plated Audio Input and Output RCA Connections
- Nickel Plated RCA Output for multi-amp Installations
Specifications
| Frequency response | 5Hz – 38kHz +/- 3dB |
| Peak power | 500 watts |
| Rated power | 14.4 Volt power output specification 65 Watts RMS x 4 @ 4? 1% THD+N 100 Watts RMS x 4 @ 2? 1% THD+N 200 Watts RMS x 2 @ 4? Bridged 1% THD+N |
| Signal to noise | >95dB |
| Separation | >60dB |
| Input sensitivity | 300mV – 8V |
| LP variable crossover | 40Hz – 160Hz @ 18dB/octave |
| Hp variable crossover | 40Hz – 600Hz @ 18dB/octave |
| variable bass boost | 0 – + 18dB @ 45Hz |
| variable subsonic filter | 20Hz – 55Hz @ 18dB/octave |
| Input impedance | 20k? |
| Damping factor | >200 |
| T.H.D. | 0.05% |
| Fuse rating | 2 x 25A |
| Dimensions | 9.16″ (W) x 14.64″(L) x 2.12(H) |
What’s in the Box:
- Amplifier
- owners manual
