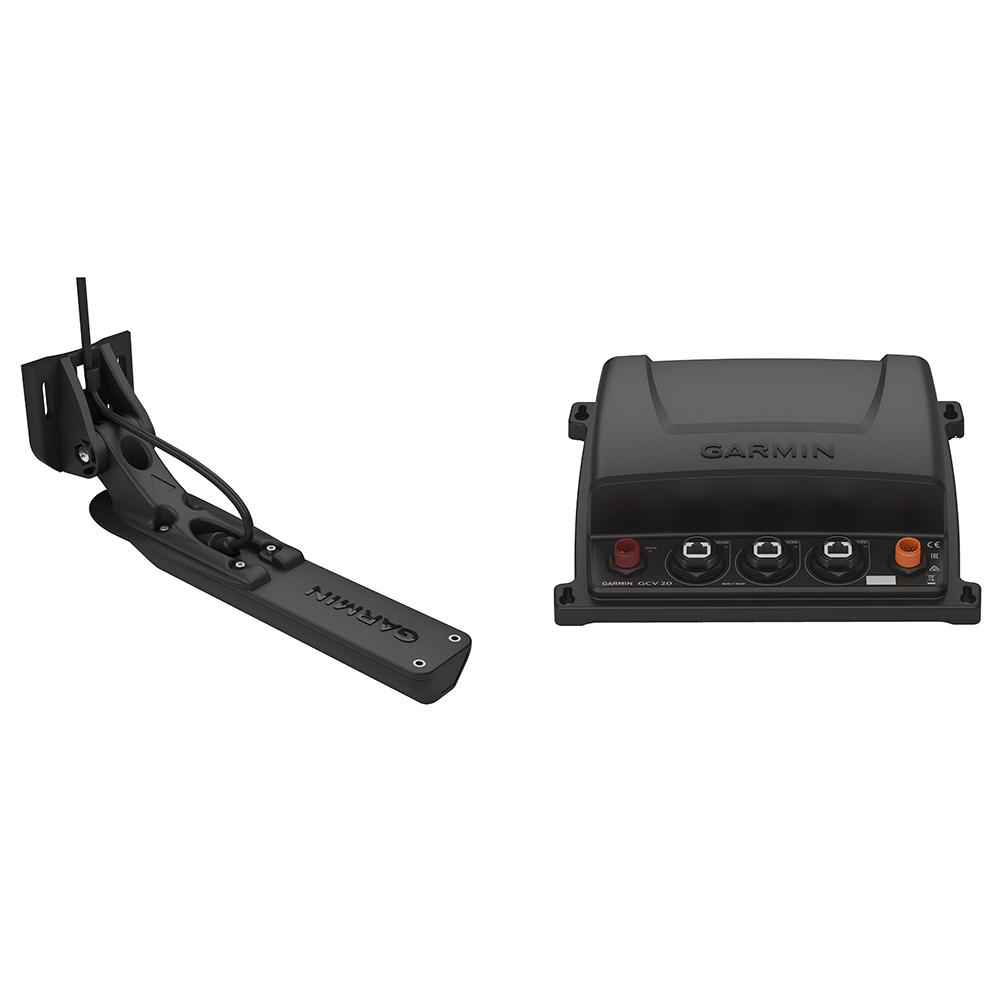

Garmin GCV™ 20 Ultra HD Scanning Sonar Black Box w/GT34UHD-TM Ultra HD Transom Mount Transducer

70801
Garmin

$599.99 $523.18

0 in stock

Qty :

Description

GCV™ 20 Ultra HD Scanning Sonar Black Box with GT34UHD-TM Ultra HD Transom Mount Transducer

Add Ultra High-Definition Scanning Sonar to Your Compatible Chartplotter
The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix™ all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

General:

  • Physical dimensions: 9.9″×7.6″×2.6″ (251mm × 192mm × 66mm)
  • Weight: 1.86lbs (845g)
  • Water rating: IPX7
  • Garmin Marine Network™ ports: 3
  • Temperature range: From 5°F to 158°F (from -15°C to 70°C)

Sonar Features & Specifications:

  • Frequencies supported:
  • Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
  • Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
  • Transmit power: 500W rms
  • Maximum depth:
  • 200′ Ultra High-Definition ClearVü
  • 125′ to each side Ultra High-Definition SideVü, 250′ total

What’s In The Box?:

  • GCV 20
  • Right-angle power cable
  • Right-angle ethernet cable
  • Mounting hardware
  • Documentation

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

  • Frequency:
  • Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
  • Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
  • Power: 500W
  • Beamwidth:
  • Ultra High-Defintion ClearVü: 0.74° x 46°
  • Ultra High-Defintion SideVü: 0.44° x 55°
  • Maximum depth
  • Ultra High-Defintion ClearVü: 200′ down
  • Ultra High-Defintion SideVü: 125′ sides, 250′ total
  • Depth/Speed/Temperature: Depth and Temperature
  • Number of pins: 12-pin
  • Cable length: 20′
  • Supported deadrise/Transom angles: 0°-70° degree transom

Watts RMS - Max = NONE | Waterproof Rating = NONE | Service Carrier = NONE | Load Equivalence # (LEN) = NONE | Frequency = NONE | Audio Capable = NONE

Additional information

Weight5.3 lbs
Dimensions13 x 12 x 5 in
Model Number010-02055-00
UPC753759206307
