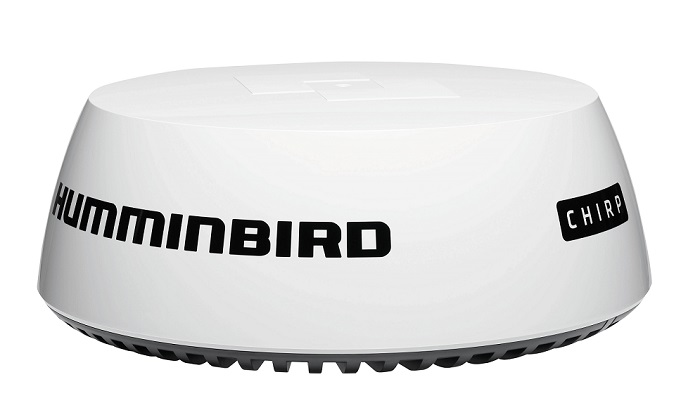

Humminbird CHIRP radar
Introducing the next generation of marine radar: new CHIRP Radar, featuring CHIRP Pulse Compression. Setting a new standard for compact solid state radar, this technology delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions, and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definition. Available for select Humminbird models with networking capabilities.
Along with excellent short-range detection (18-ft minimum range), CHIRP Pulse Compression ensures more energy reaches each target for superior imaging at long ranges up to 24 nautical miles. CHIRP Pulse Compression identifies small or weak targets, even while positioned close to strong returns.
Thanks to solid state technology, Humminbird radar is safe, reliable and lightweight. At 12.3 lbs, the radar unit weighs 50% less than traditional magnetron radars and offers safe emissions with a low power radar transmitter. It’s also ready to use in seconds, without a lengthy warm-up period.
See things more clearly with Humminbird CHIRP Radar. Shorelines, buoys, other boats and weather-watch it all take shape on your display for maximum safety and a competitive edge. Available for all networking models, advanced target separation displays targets with unsurpassed resolution and quality.
|Antenna Diameter||21″ Dome|
|Antenna type||patch array|
|Peak power output||20 watts|
|Transmit frequency||9354 to 9446 MHz|
|Beamwidth (nominal)||4.9° Horizontal and 20° Vertical|
|Input voltage||12 or 24vDC|
|Max. Range scale||1/16 to 24 nautical miles|
|Power consumption||17 watts transmit, 7 watts standby|
|Pulse widths (3dB)||40 ns to 14.7 µs|
|CHIRP lengths||400 ns to 20 µs|
|CHIRP bandwidth||Up to 32 MHz|
|IF bandwidth||26 MHz|
|Noise||less than 4 dB|
