Description

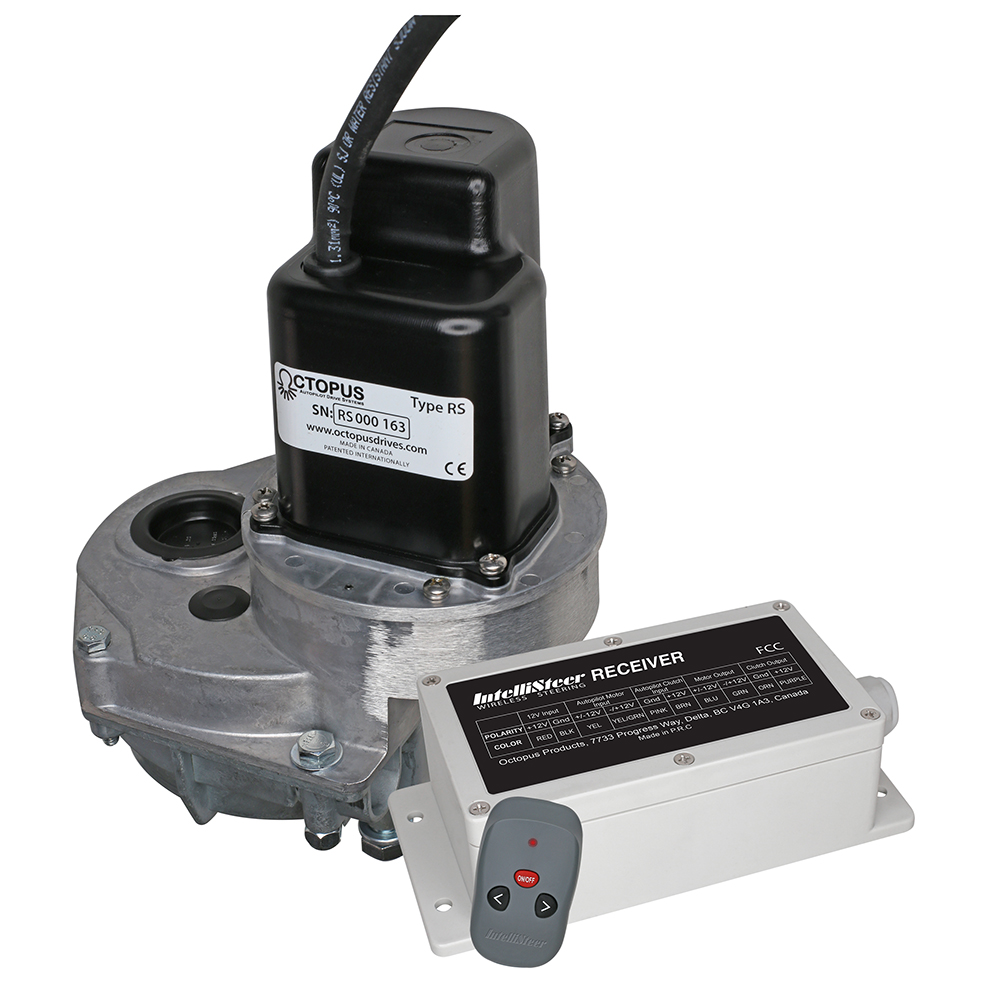

Type R for Cable Steered Boats with Auxiliary Outboards
Features:
- Drive connects to kicker
- Electronic clutch disengages for manual steering
- Rotary drive system
- Safety override technology
- Current 1.25A typical, 5A peak
- 6' steering cable for connecting drive unit included
- Requires outboard link arm assembly
- Wireless control module plus handheld pendant – steering in the palm of your hand
- Steer, fish and cruise from anywhere on the boat
- Easy DIY installation – no need for professional installer
- 2 Year limited warranty – purchase with confidence
Specifications:
Wireless Controller & Receiver
- Meets FCC standards
- Additional Handheld and receiver can be paired in field
- Pendant and receiver auto-off in 30 minutes if no usage
- Over 1 Million control codes provide enhanced security
Handheld Pendant
- Water proof
- Supplied with 2xAAA batteries
- Includes lanyard
Wireless Receiver & Motor Controller
- Waterproof
- Motor drive capability up to 25A
- Overload protection
- Reverse polarity protection
- 12V DC nominal (9V min – 16V max operating range)
- Offers pass-through capability for Autopilot motor and clutch control circuits
Cable Length (Feet) = NONE | Type = Parts | Steering Type = NONE
