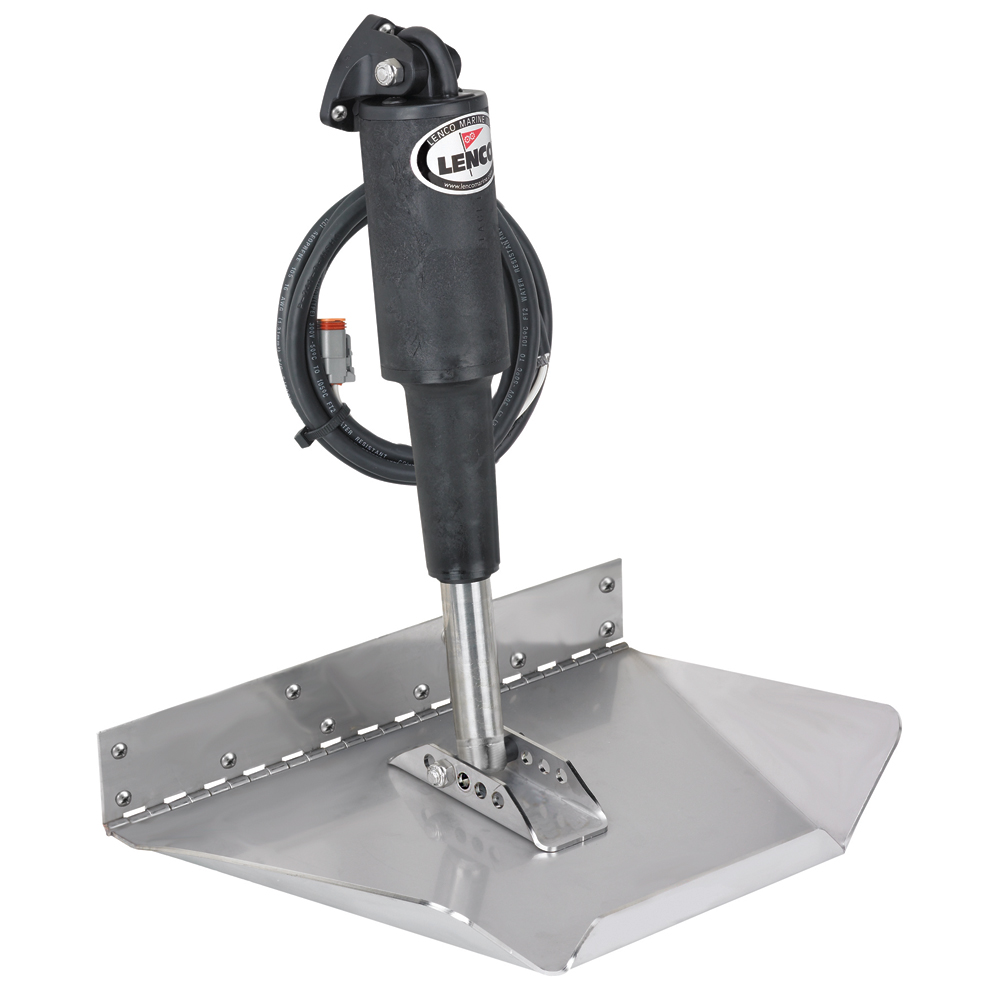

Lenco 9″ x 14″ Airboat Trim Tab Kit w/o Switch

50940
Lenco Marine

$424.40 $264.18

7 in stock

Qty :

Description

Airboat Trim Tab Kits
12-Gauge Blades / 12-Volt Actuators

Lenco Airboat Electric Trim Tab Kit was designed exclusively for airboats. Engineered with a short Extreme Duty Actuator and a unique mount that allows maximum plate movement and safe upward position when running in shallow water and on land. This system eliminates porposing and helps to create a smoother ride.

Blade is 12 gauge – 304 SS with 5/8″ flared trailing edge and 1″ Custom Hinge with 1/8″ diameter hinge pin. Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections.

Kit Contents

  • 1 each of 12-gauge 304 stainless steel trim tab plane
  • 1 each of #15055-001 XD actuator with 6′ lead and Deutsch plug
  • 1 each of #30133-002 14′ actuator extension wiring harness
  • 1 each of #15085-001 (116) upper mounting bracket with gland seal
  • 1 each of the Lenco owner’s/installation manual
  • All necessary stainless steel mounting hardware

Specifications

  • Trim Tab Kit: Airboat
  • Blades: 12 Gauge Stainless Steel
  • Finish: Smooth
  • Switch Kit: Sold Separately
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Made in: Stuart, Florida U.S.A.

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Actuator Type = Electro-Mechanical | Construction = Stainless Steel

Additional information

Weight 11.3 lbs
Dimensions 25 × 13 × 7 in
Model Number 15112-101
UPC 874847006637
