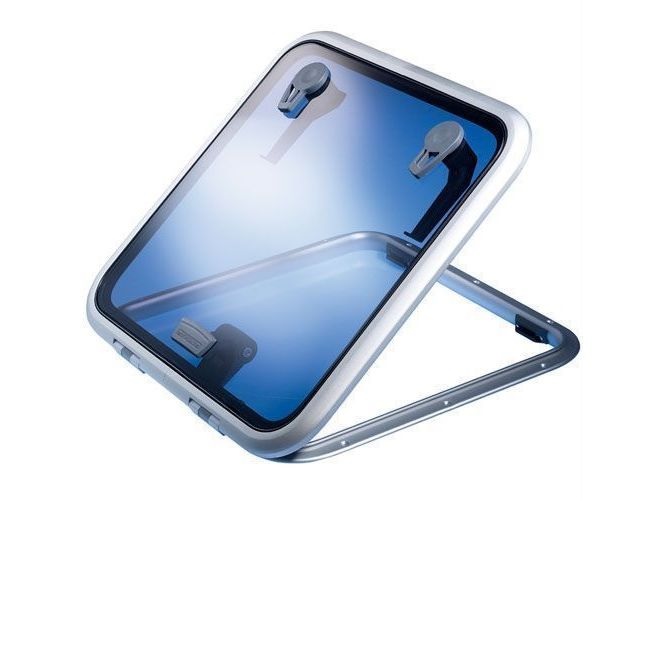

Lewmar Size 20 Low Profile Hatch Flange Base

LEW39920030
Lewmar

$540.95 $306.20

2 in stock
Qty :

Description

Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 4.9 5/16

Dimensions

Length X (in) Width Y (in) Height Z (in) Radii R (in) Cut-Out Length X1 (in) Cut-Out Width Y1 (in) Cut-Out Radii R1 (in)
10 11/16 16 7/16 1 2 7/8 7 15/16 13 11/16 1 11/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Additional information

Weight 7.00 lbs
Model Number 39920030
UPC 743683107078
