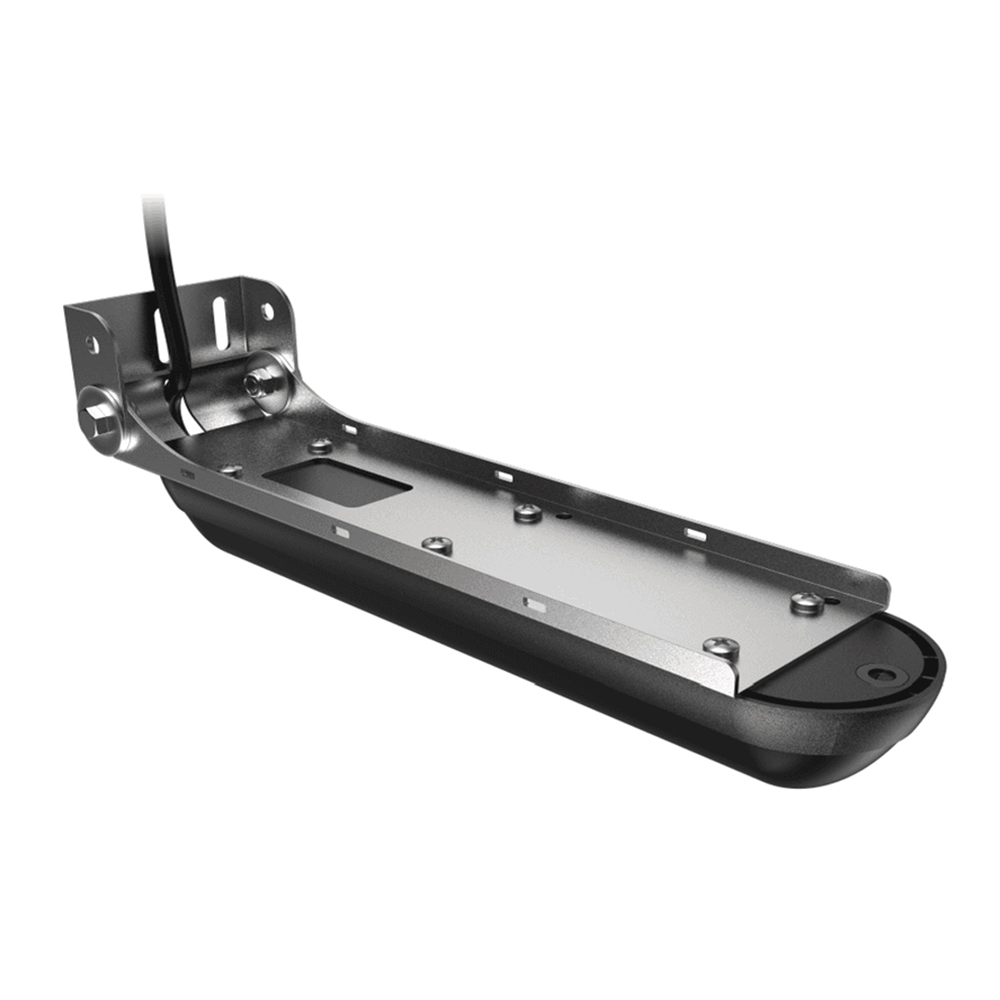

Navico Active Imaging 2-in-1 Transducer

74496
Navico

$249.00

(MRP Pricing)

0 in stock
Qty :

Description

Active Imaging 2-in-1 Transducer

Active Imaging Transducers

  • Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range
  • Active Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performance

Active Imaging is available in two models

  • The Active Imaging stand alone transducer lets the user combine the new Active Imaging transducer with a separate CHIRP transducer for dual transducer installs.
  • Active Imaging operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz)

Active imaging Technology

  • Active Imaging utilizes the latest techniques in sonar signal generation
  • Active Imaging transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive
  • Active Imaging transducers include separate sonar elements for SideScan transmit and receive Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance

Key Features:

  • Active Imaging sonar offers no compromise high resolution detail to users
  • 800kHz operation covers many use cases and ranges.
  • With 800kHz range and resolution capabilities users do not need to choose between seeing in High detail or seeing far
  • High resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environment
  • Active Imaging transducers do not require any modules or extra hardware for use with next-generation displays

Environmental

  • Operating temperature: -15°C to +55°C (+5°F to +131°F)
  • Storage temperature: -30°C to +70°C (-22°F to +158°F)

Physical

  • Cable length:   7.6 m (25 ft)
  • Mounting options: Transom, flush step, and jackplate mounting
  • Connector: 9 pin

Transducer

  • Output: SideScan imaging, DownScan imaging and temperature
  • Frequency: 455 kHz and 800 kHz
  • Max depth: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz
  • Operating speed: DownScan and SideScan: 9 knots (10 mph)

Temperature = NONE | Speed Included = NONE | Pins = NONE | Mounting Style = NONE | Imagining = NONE | Chirp = NONE | Cable Length (Feet) = NONE

Additional information

Weight 3.6 lbs
Dimensions 13 × 10 × 4 in
Model Number 000-14490-001
UPC 9420024172780
