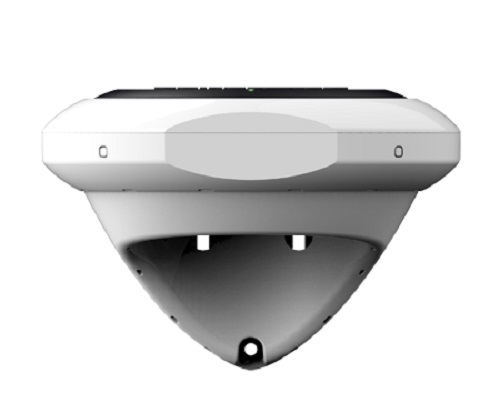

Raymarine EV1 Sensor Core

RAYE70096
Raymarine

$799.99 $649.63

2 in stock
Qty :

Description

Model

E70096: EV-1



Nominal supply voltage

12 V (powered by SeaTalkng system)

Operating voltage range

10.8 V to 15.6 V dc

Power consumption

(taken from SeaTalkng system)

30 mA

SeaTalkng LEN

(Load Equivalency Number)

1

Sensors

3-axis digital accelerometer

3-axis digital compass

3-axis gyro digital angular rate sensor

Data connections

SeaTalkng



NMEA 2000 DeviceNet (EV-2 only)

Installation environmental

Operating temperature: -20°C to +55°C (-4°F to +131°F)

Storage temperature: -30°C to +70°C (-22°F to +158°F)

Relative humidity: max 93%

Waterprrof rating: IPX 6

Dimensions

Diameter: 140 mm (5.5 in)

Depth (including mounting enclosure): 35 mm (1.4 in)

Depth (including wall bracket): 95 mm (3.8 in)

Weight

0.29 kg (0.64 lbs)

EMC compliance

Europe: 2004/108/EC

Australia and New Zealand

Additional information

Weight 2.00 lbs
Model Number E70096
UPC 723193768884
