Scanstrut LMM-2 Self Leveling Radar Mount

34764
Scanstrut

$1449.00 $888.42

0 in stock
Qty :

Description

Self Levelling Radar Mount – Mast

Devices Compatible with LMM-2 Self Levelling Radar Mount

Furuno – 1621, 1622, 1623, 1715,  1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18″), NavNet (24″)

Humminbird – AS 21RD4KW

Interphase – Mini RE-1, RE-8, RE-9

JRC– 1000, 1000mk2, 1066, 1500, 1500mk2

Koden – 2kW 12″, 4kW [RB715A]

Lorenz – 2kW

Lowrance – LRA-1800 / RB714A / DX42

Navman – 8000 Series [8084/8120] 18″

Nobeltec – 2kW (20″)

Northstar – M series/8000i (18″)

Seiwa – SWR-1, SWR-8,SWR-9

Simrad – GB40 / NX40/45 / NSE8/12 / RB712A / DX42S

Sitex – MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066

Techmarine – T-72.01, T-72.02,  T-72.04

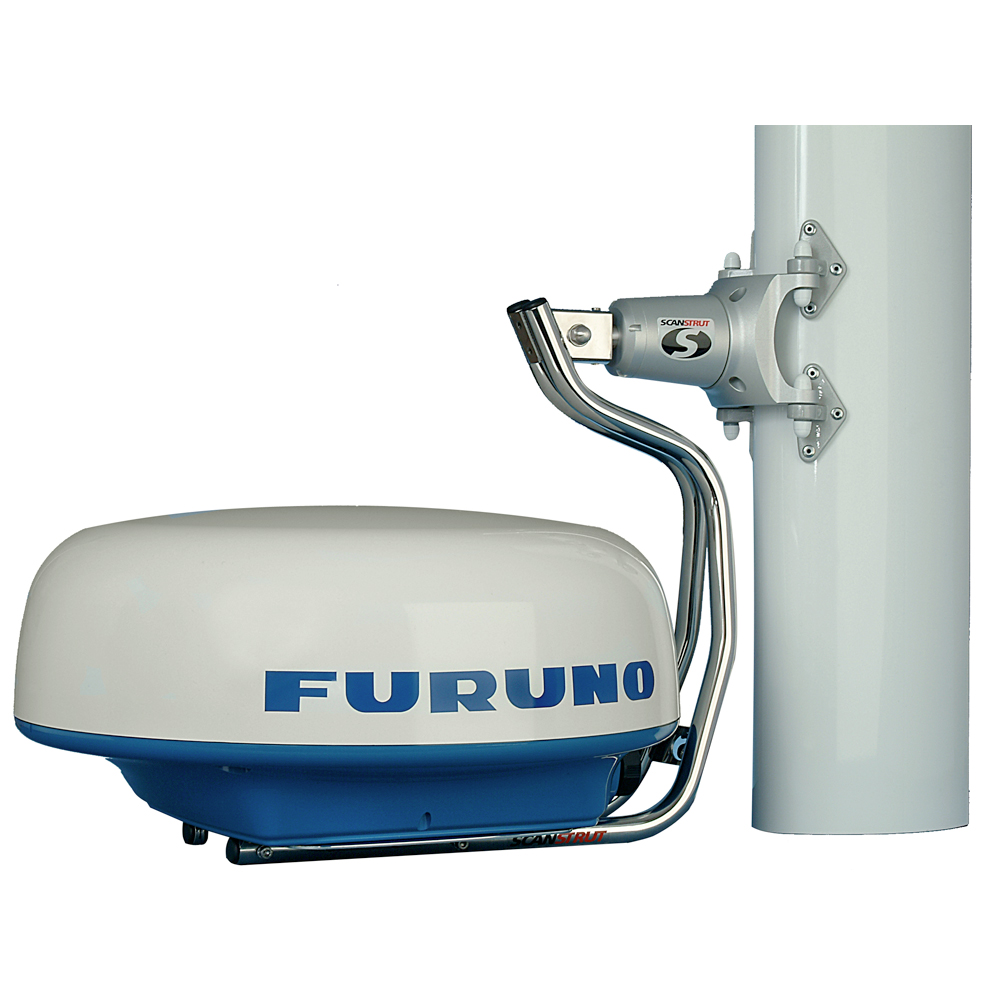

Our Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features

  • Hydraulic damping to eliminate minor oscillations
  • Sealed system – entirely maintenance free
  • Passive system – no power required
  • Reduced weight aloft – complete system weighs only 3.4 kg
  • Easy upgrade from fixed mast mount – same mounting footprint as SC20 & M92722
  • Attached to mast by four swivel ffet – matches the profile of any mast
  • 12 point fixing – highest quality monel rivets
  • Compact mount – radar extends only minimum distance from front of mast

Materials

  • Finest quality machined and anodised aluminium mast adapter
  • Marine grade 316 stainless steel cradle and base plate

Kit includes

  • 1 x Levelling mount
  • 1 x Mast Adapter
  • 1 x Complete fastening pack

Construction = Stainless Steel | Type = Self Leveling | Height = NONE

Additional information

Weight 9.3 lbs
Dimensions 16 × 16 × 6 in
Model Number LMM-2
UPC 5060114791169
