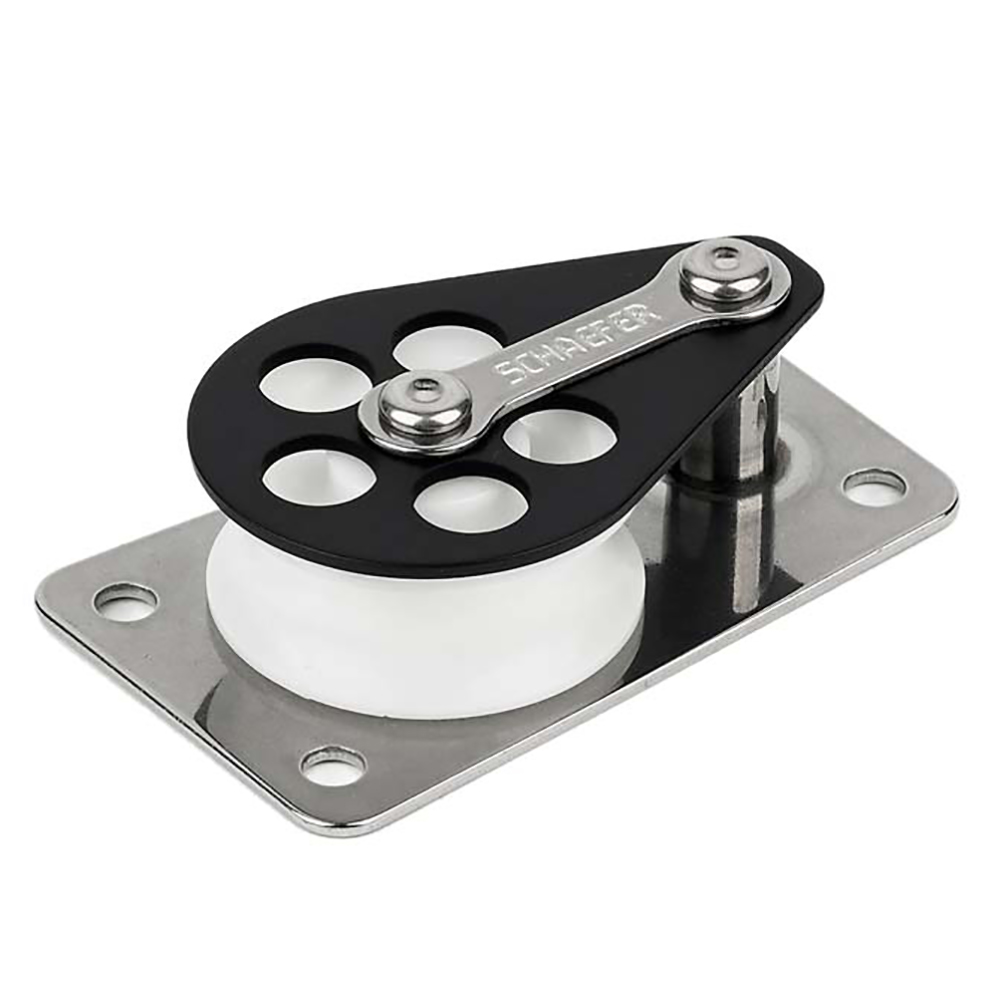

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave

74707
Schaefer Marine

$80.30 $54.04

1 in stock
Qty :
,

Description

Series 3 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.

Specifications:

  • Sheave Dia. 1-7/16″ (37 mm)
  • Max Line 7/16″ (11 m)
  • Length 2-7/8″ (73 mm)
  • Width 1-3/4″ (44 mm)
  • Height 3/4″ (19 mm)
  • Fasteners (4) #10- RH (5 mm)
  • C/C 2-3/8″ (60 mm)
  • SWL 1000 lbs. (450 kg)
  • Weight Alum. 2.5 oz. (71 g)

Additional information

Weight 0.15 lbs
Dimensions 4 × 2 × 1 in
Model Number 303-09
UPC 740507003240
