Shakespeare 5250AIS 36″ S/S VHF Skinny Mini

SHA5250AIS
Shakespeare

$94.99 $56.45

12 in stock
Qty :

Description

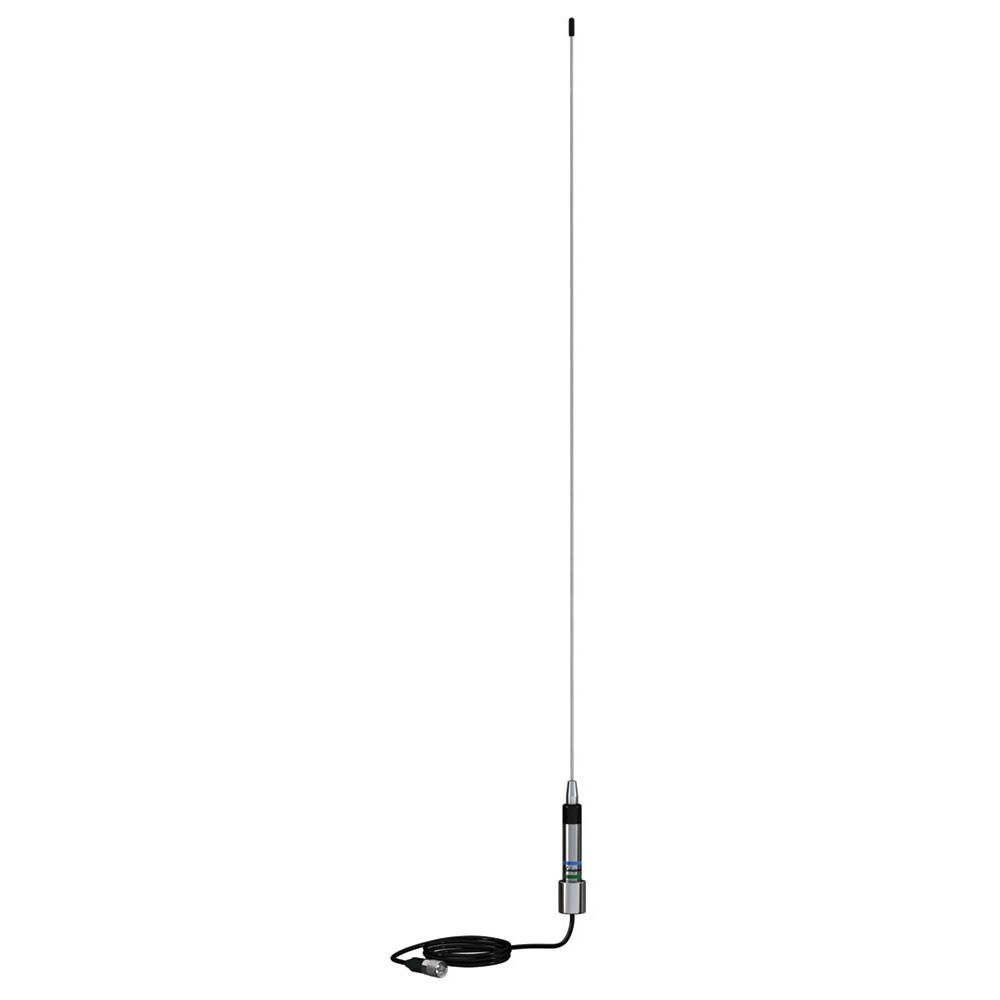

Shakespeare Style 5250-AIS   Skinny Mini
3 ft. (0.91 M) VHF Marine Band  3dB


End-fed -wave stainless steel whip

Designed to meet the broader bandwidth requirements of all popular AIS transceivers, this antenna mounts with ease. Its compact size will be welcome aboard any vessel. Chrome plated brass canister minimizes the de-tuning associated with antennas having plastic canisters.


  • Built for AIS transceivers
  • Sealed, tin-plated copper wire coil
  • Stainless steel whip (36")
  • Requires mount with center hole for passage of the supplied 15′ RG-58 cable.
  • Suggested mount: Style 4187, 5187, 4188-S or 4190 Ratchet Mount (each sold separately)
  • PL-259 connector included
  • One section

Suggested mount(s):   4187     4188-S



Shakespeare 5250-AIS Skinny Mini Specifications
Band: VHF Marine Band
Antenna Gain: 3dB
Max. Input Power: 50 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 6 MHz within 2.0:1 VSWR
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground – The antenna will read open on continuity test.
Shakespeare
Limited Warranty:
2 years

Additional information

Weight 3.00 lbs
Model Number 5250-AIS
UPC 719441100803
