Shakespeare 390 23′ Single Side Band Antenna NOT UPS SHIPPABLE

10595
Shakespeare

$312.95 $139.60

Qty :
,

Description

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

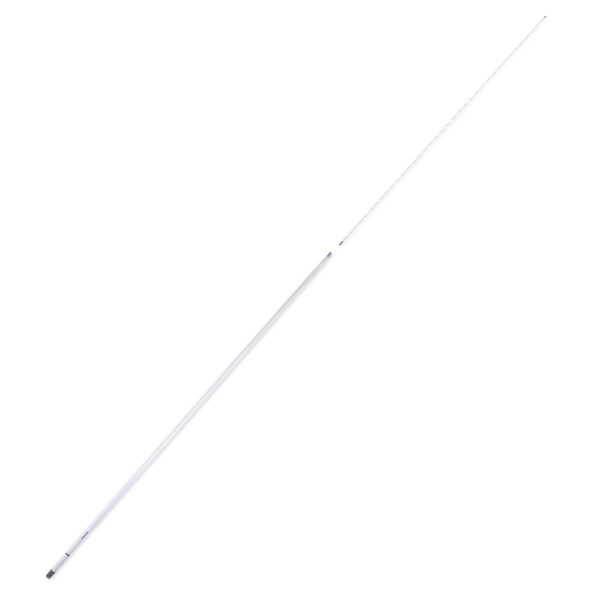

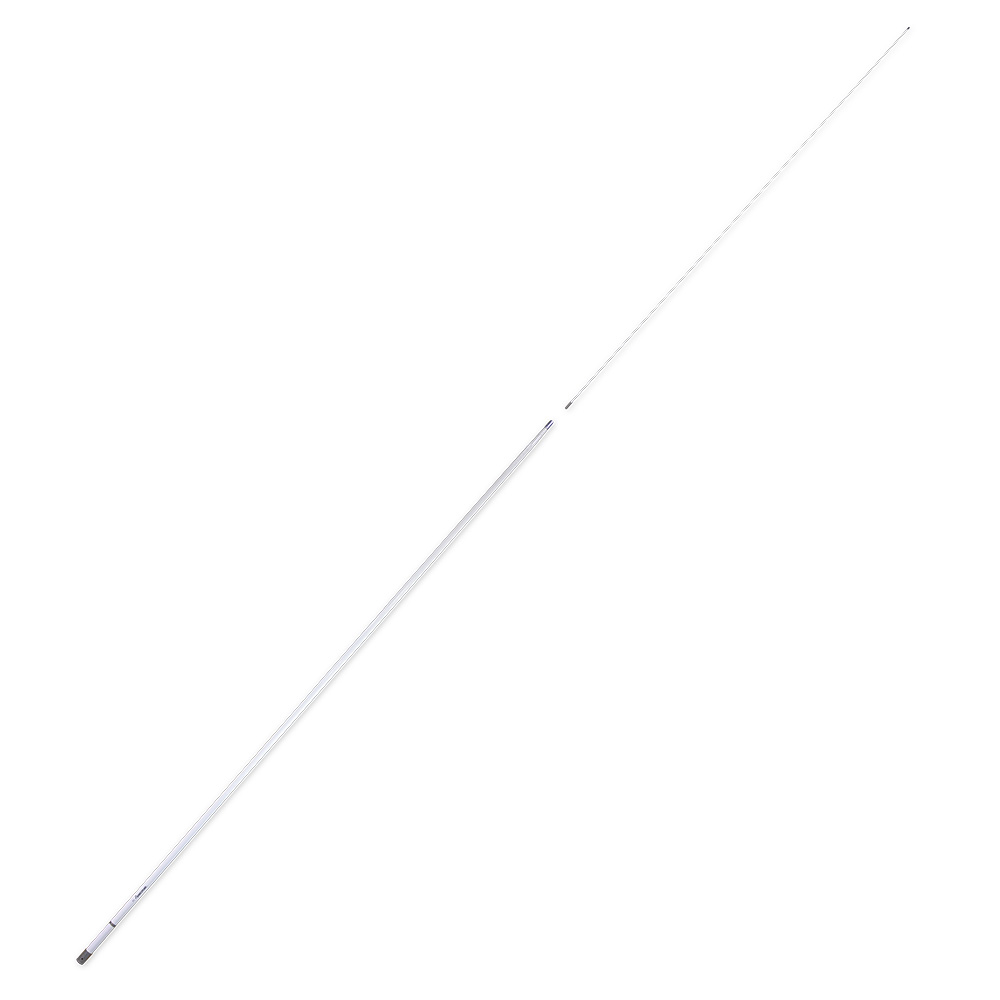

Shakespeare Style 390 SSB
23′ LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.

  • Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
  • Side feed termination band
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
  • Two sections: Base 162"; Tip 112"
  • Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:2-30 MHz HF band with tuner
Bandwidth:Resonant frequency 10.8 MHz
SWR:N/A
Impedance:(Ohms): N/A
Gain:N/A
Max Input (Watts):1000
DC Ground:N/A
Termination:Side Termination
Height (feet):23
Polarization:Vertical
Radiation pattern:Omni-directional

Quick Guide Litreture

Brochure Litreture

Antenna Band = SSB | Cable Length (Feet) = NONE | Cable Type = NONE | Color = White | Construction = Fiberglass | DB Gain (dB) = NONE | Ferrule Type = Chrome Plated | Length (Inches) = 23'

Additional information

Weight20 lbs
Dimensions108 x 3 x 3 in
Model Number390
UPC719441600013
Warranty2 years
