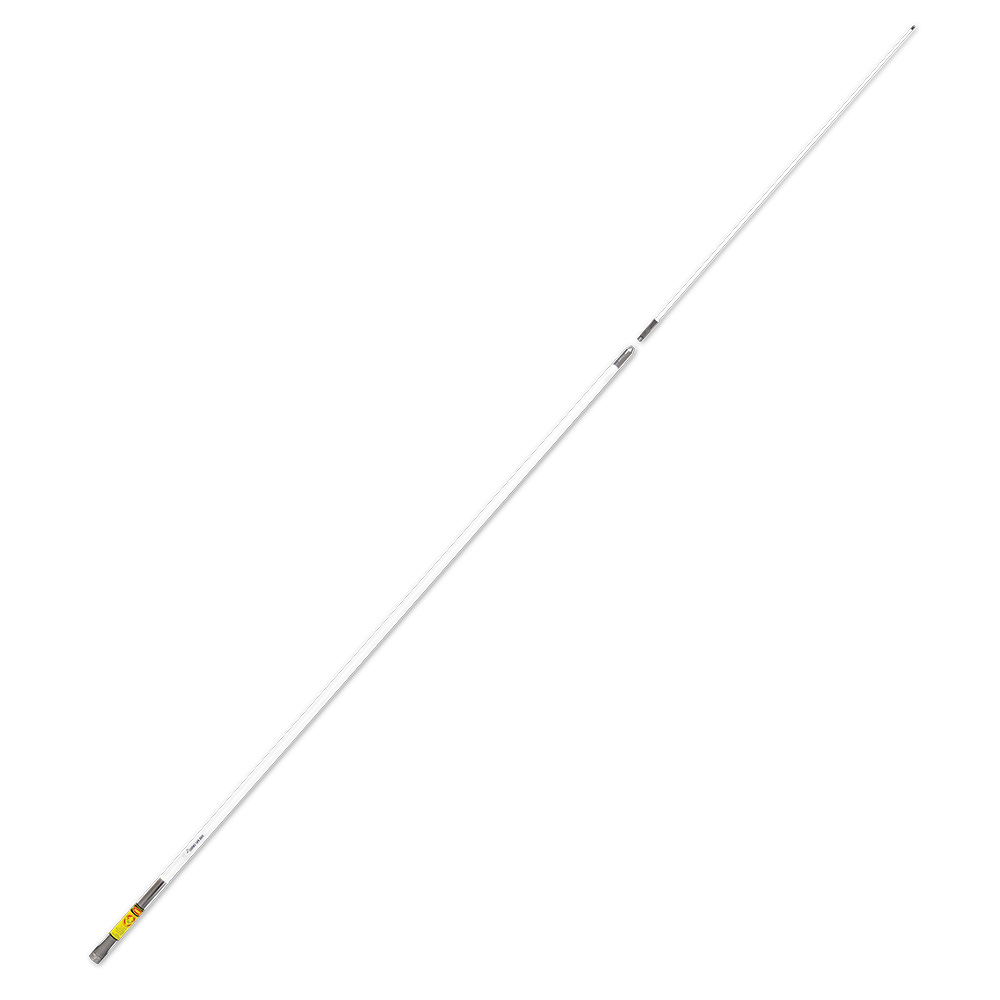

Shakespeare 399-1M 9’6″ VHF Antenna

10599
Shakespeare

$363.95 $160.91

0 in stock

Qty :
,

Description

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don’t have room for one.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1"-14 thread
  • Aluminum sleeve for mast mounting
  • Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)
  • Two sections: Base 75"; Tip 39" UPS shippable

Technical Specifications:

Frequency:VHF Marine band
Bandwidth:(within 2.0:1 SWR): 5MHz
SWR:1.5:1 at 156.8 MHz
Impedance:(ohms): 50
Gain:6 dB
Max Input (Watts):100
DC Ground:YES
Termination:SO – 239
Height (feet):9.5
Polarization:Vertical
Radiation pattern:Omni-directional

Quick Guide Litreture

Brochure Litreture

Antenna Band = VHF | Cable Length (Feet) = 15' | Cable Type = RG-58 | Color = White | Construction = Fiberglass | DB Gain (dB) = 6 dB | Ferrule Type = Chrome Plated | Length (Inches) = 9'6"

Additional information

Weight5.2 lbs
Dimensions88 x 5 x 5 in
Model Number399-1M
UPC719441100032
