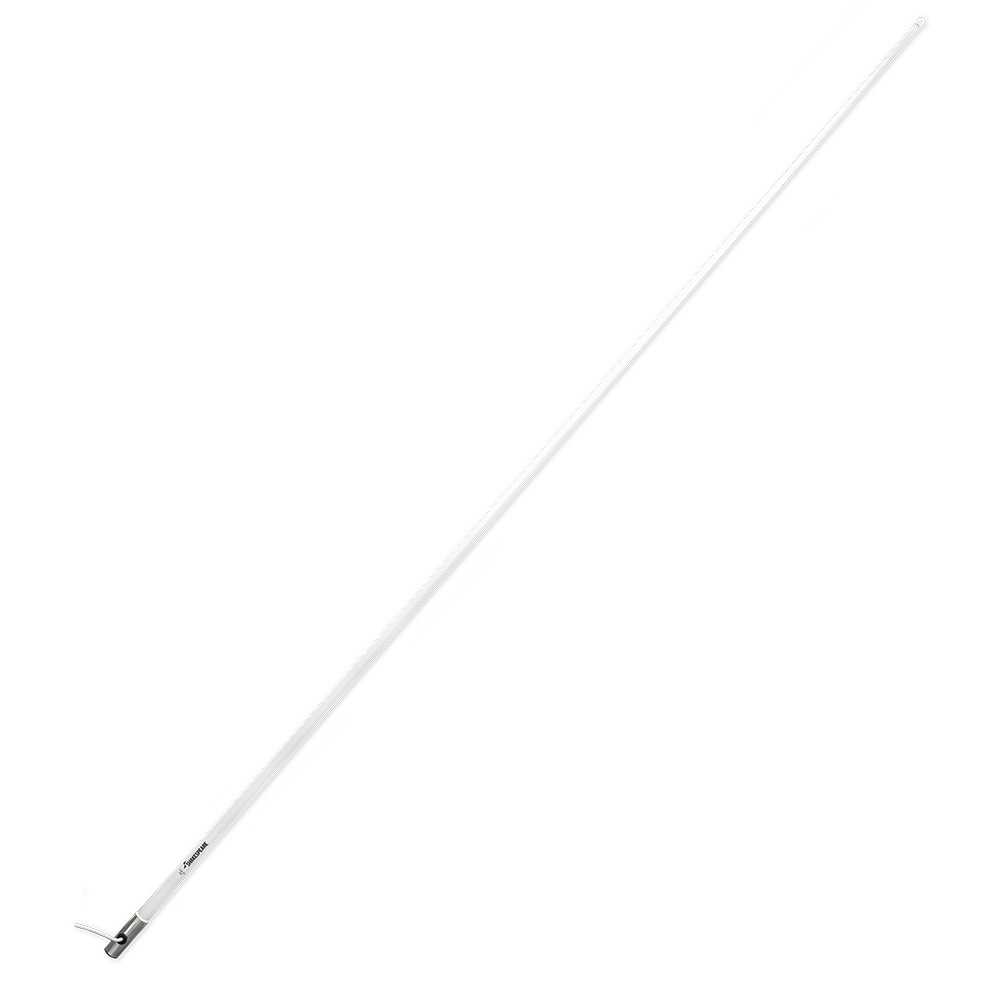

Shakespeare 5101 8' Classic VHF Antenna w/15' Cable

13267
Shakespeare

$99.99 $74.01

107 in stock
Qty :
,

Description

5101 8′ Classic VHF Antenna with 15′ Cable – Reduced Length Version

END-FED WITH MATCHING STUB

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8′ antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.

Features:

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1″-14 thread
  • Includes 15′ RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16′ antenna system
  • One section
  • Shakespeare Limited Warranty: 2 years

Technical Specifications:

  • Frequency:    VHF Marine Band
  • Bandwidth:    (within 2.0 1 SWR): 5 MHz
  • SWR:    1.5:1 at 156.8 MHz
  • Impedance:    (Ohms): 50
  • Gain:    6 dB
  • Max. Input (Watts):    50
  • DC Ground:    YES – however, the antenna will read “open circuit” when tested with ohmeter.
  • Termination:    15′ RG-58 cable
  • Height (feet):    8′
  • Polarization:    Vertical
  • Radiation pattern:    Omni – directional

Quick Guide Litreture

Brochure Litreture

Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = Chrome Plated | Length (Inches) = 96"

https://www.youtube.com/embed/pbY3nA9JieQ

Additional information

Weight 3.8 lbs
Dimensions 95 × 2 × 2 in
Model Number 5101
UPC 719441100490
Warranty 2 years
